Faller Bar

We manufacture Faller Bars for worsted yarn processing, designed for integration with screw-driven and chain-driven gill boxes. Our range covers faller bars for leading gill box systems, with different dimensions, pin configurations, pin densities, pin fields, and fixing methods to meet specific machine requirements.

The range includes solutions for NSC Schlumberger, St. Andrea, Cognetex, OKK, and other gill box systems, with round and flat pin options available across different configurations.

Click here to download.

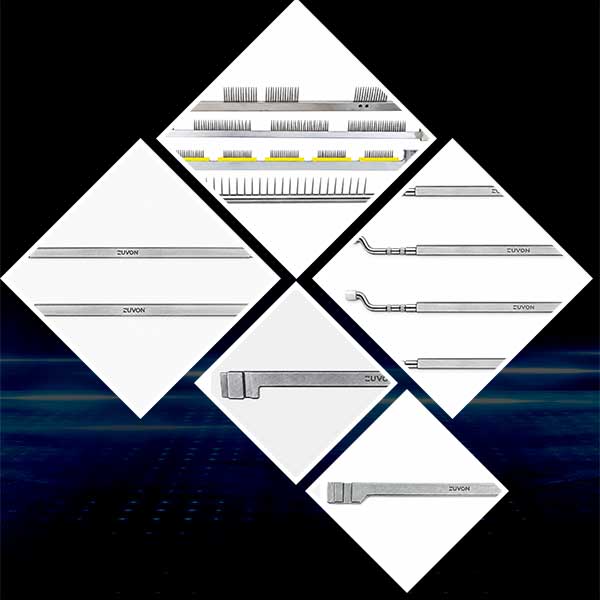

Product Range

Explore our comprehensive range of products designed to meet diverse industrial requirements.

-

NSC GC 12/13/14/15/30

-

ST. ANDREA CSN

-

ST. ANDREA ST21

-

NSC GN5/6/7

-

ST. ANDREA SEUP

-

COGNETEX

Key Features

  • Application-Specific Designs: Faller bars are available for different gill box models and machine configurations.
  • Multiple Pin Configurations: Available with both round and flat pins.
  • Flexible Pin Density: Available in different pin densities, depending on machine and application requirements.
  • Multiple Pin Fields: Available with different pin field dimensions for compatible gill box systems.
  • Multiple Fixing Methods: Depending on the pinning system, options include press fit, two-component adhesive, and pre-glued configurations.

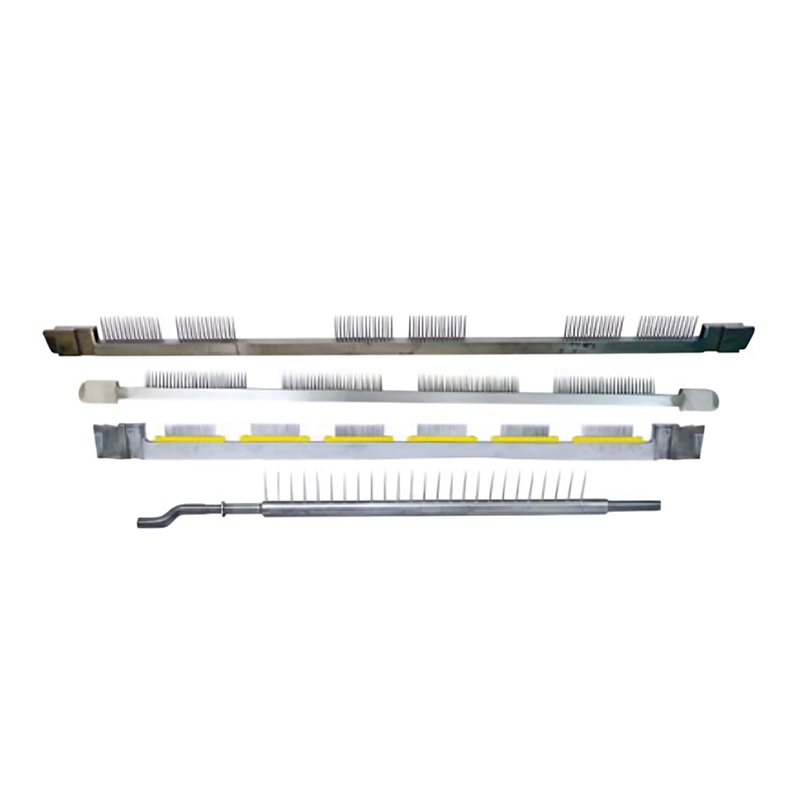

  • Faller Bar NEO: Premium faller bars manufactured from case-hardened steel, with specially extra-hardened ends for enhanced durability and reliable operation.
  • Metallic Pin Strip Options: NEO faller bars are available with metallic strips using round and flat pins.

Technical Specifications

Parameter Specification
Application Worsted yarn processing
Gill Box Systems Chain Driven / Screw Driven
Pin Type Round / Flat
Pin Density 2.5–9 pins per cm, depending on model
Pin Field 200 mm / 220 mm / 228 mm / 270 mm, depending on model
Fixing Methods Press Fit / Two-Component Adhesive / Pre-Glued
Faller Bar Materials Steel / Case-hardened steel for NEO range
NEO Pin Material Special alloy-based tooling steel
NEO Pin Options Round / Flat
NEO Construction Case-hardened steel with specially extra-hardened ends

Machine Compatible

  • GC ST 21
  • St. Andrea
  • Cognetex
  • OKK
  • Warner & Swasey
  • NSC Schlumberger

Machine-specific Faller Bar Range

NSC GC 12/13/14/15/30

  • 332 × 13.5 mm
  • 332 × 17.5 mm
  • 382 × 13.5 mm
  • 382 × 17.5 mm

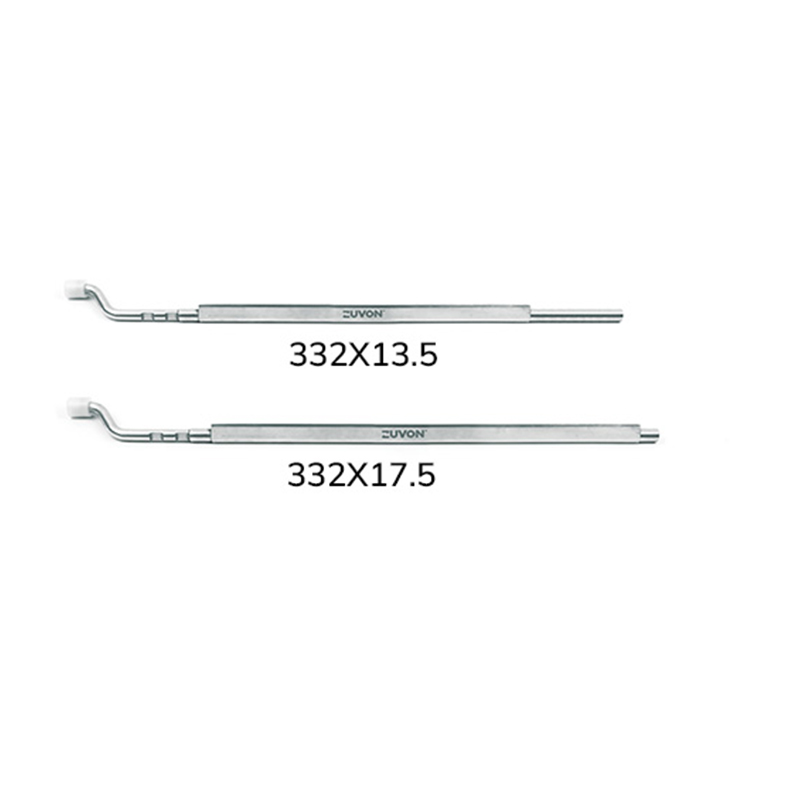

ST. ANDREA CSN

  • 332 × 13.5 mm
  • 332 × 17.5 mm

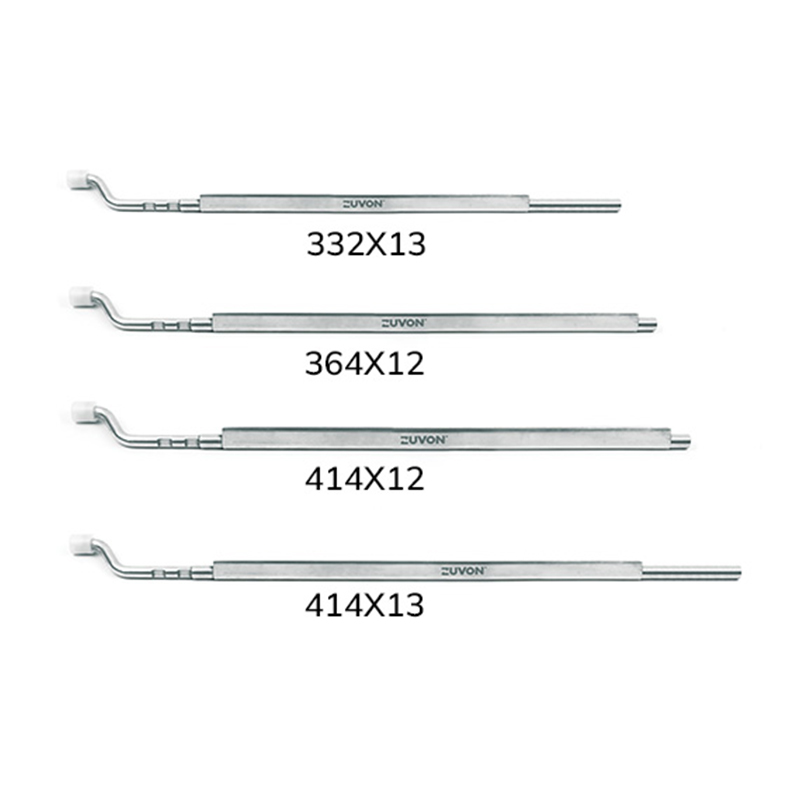

ST. ANDREA ST21

  • 332 × 13 mm
  • 364 × 12 mm
  • 414 × 12 mm

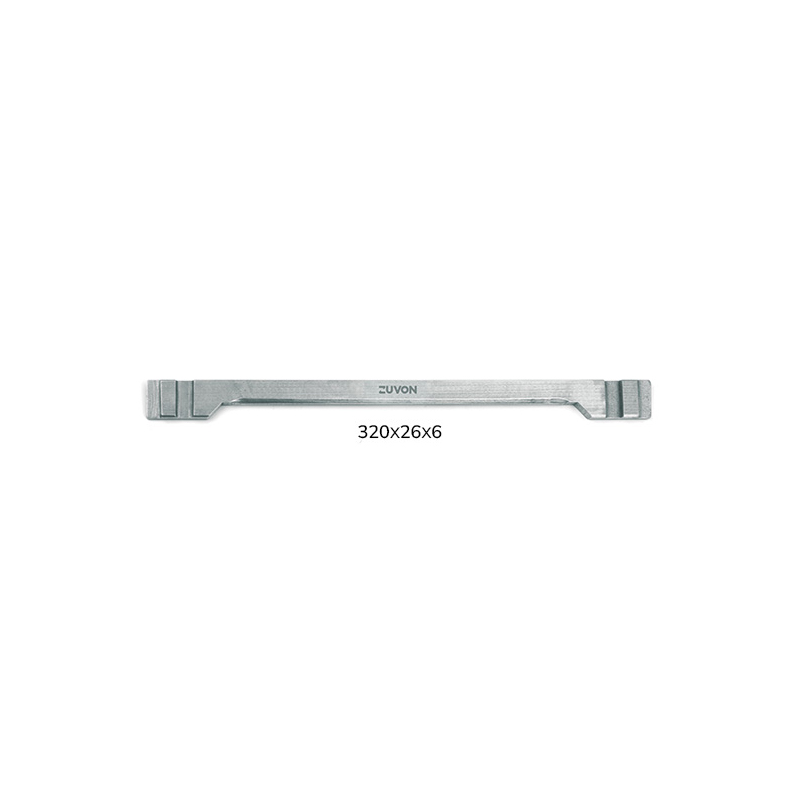

NSC GN5/6/7

  • 320 × 23 × 6 mm

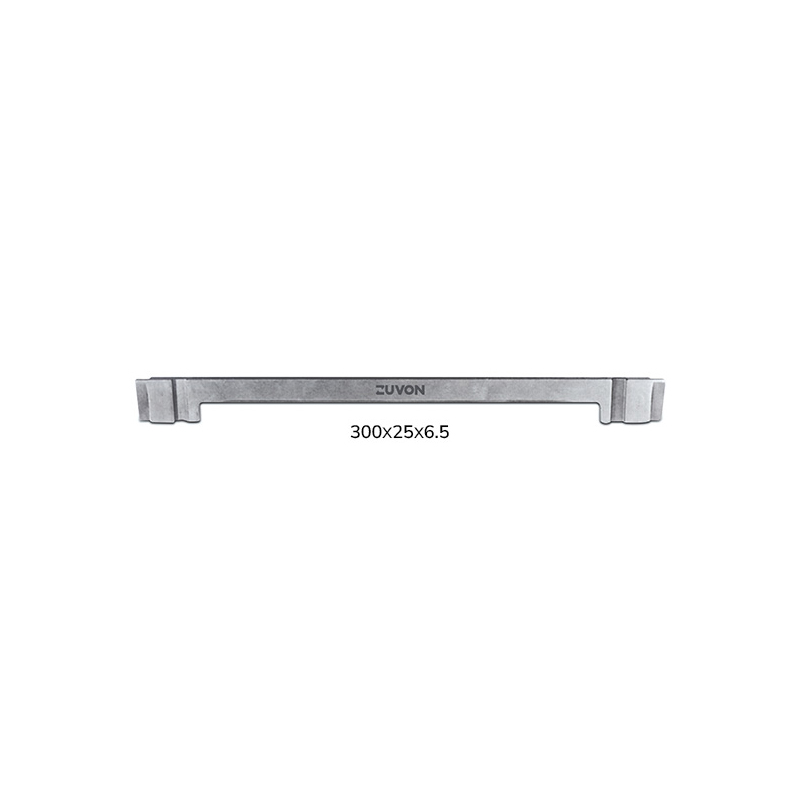

ST. ANDREA SEUP

  • 300 × 25 × 6.5 mm

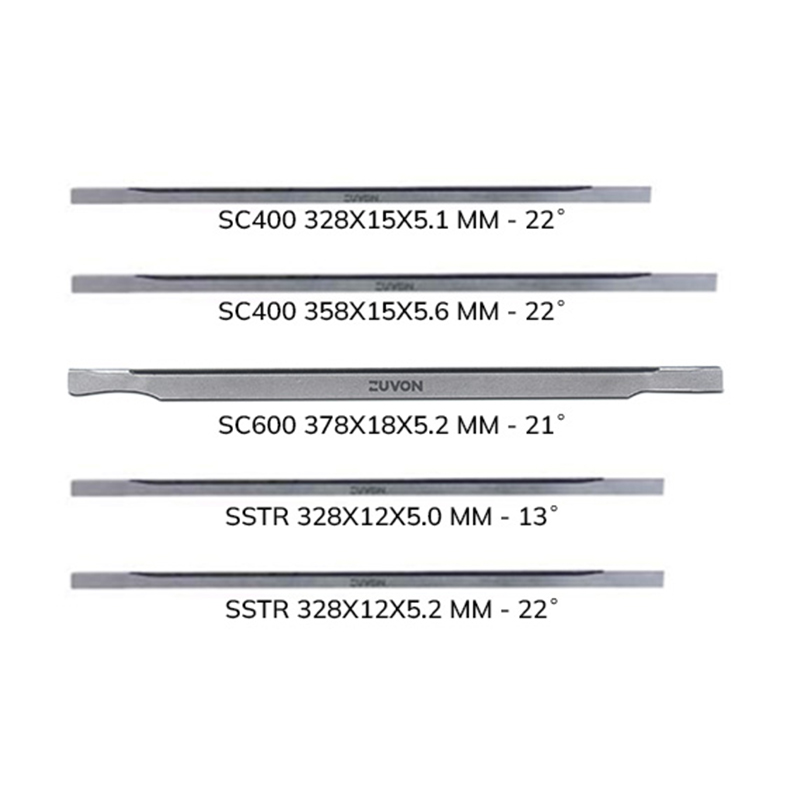

COGNETEX

  • SC400 – 328 × 15 × 5.1 mm – 22°
  • SC400 – 358 × 15 × 5.6 mm – 22°
  • SC600 – 378 × 18 × 5.2 mm – 21°
  • SSTR – 328 × 12 × 5.0 mm – 13°
  • SSTR – 328 × 12 × 5.2 mm – 22°

Faller Bar

  • The entire faller bar is made from case hardened steel, with ends specially extra-hardened,ensuring smooth and reliable operation.
  • Pins are manufactured from a special alloy-based tooling steel, offering significantly enhanced wear resistance compared to conventional high carbon steel pins.
  • Metallic strips for faller bars are securely fixed using glue or soldering,ideal for hard fibres and eliminating any risk of pins or strips dislodging during operation.
  • Our range of metallic pin strips includes both round and
    flat pin options.
Faller Bar Nio

Industry We Serve

Explore our comprehensive range of products designed to meet diverse industrial requirements.

Sisal, Jute and Flax
Worsted

Frequently Asked Questions

Find answers to common questions about our products, applications, and capabilities.

Faller Bars are used in gill boxes for worsted yarn processing, supporting the controlled movement and guiding of fibres during processing.

Our faller bar systems are available with round and flat pins, depending on the machine and application requirements.

Depending on the gill box model, pin densities range from 2.5 to 9 pins per cm.

Depending on the pinning system, fixing methods include press fit, two-component adhesive, and pre-glued configurations.

The range is designed for gill box systems from NSC Schlumberger, St. Andrea, Cognetex, OKK, and other compatible machines.

Faller Bar NEO is a premium range designed for enhanced performance, durability and usability in demanding applications. The entire faller bar is made from case-hardened steel, with specially extra-hardened ends for reliable operation.

The NEO range uses pins manufactured from special alloy-based tooling steel, offering enhanced wear resistance compared with conventional high carbon steel pins.

Yes. The NEO range includes metallic pin strips with round and flat pin options, which can be securely fixed using glue or soldering according to application requirements.
