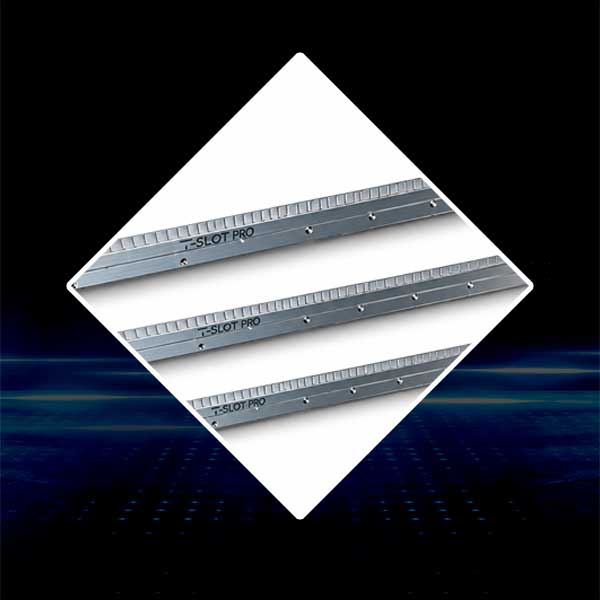

Top Comb

We manufacture top combs for wool combing machines, designed for effective combing of fibre tuft ends in worsted yarn processing. Available in a range of pinning densities, strip lengths and projections, our top combs are designed for consistent performance, easy replacement and long-term use across compatible combing machines.

Click here to download.

Product Range

Explore our comprehensive range of products designed to meet diverse industrial requirements.

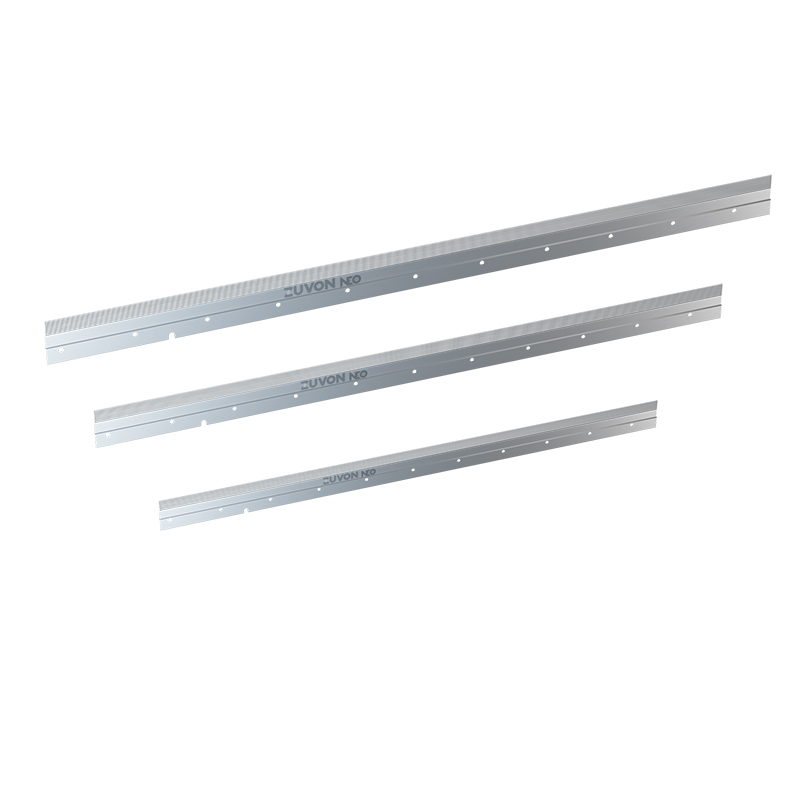

top-comb

Key Features

  • Excellent Fibre Combing: Designed for effective combing of fibre tuft ends.
  • Durable Design: Built for consistent performance during processing.
  • Easy Replacement: Engineered for convenient replacement when required.
  • Long-Term Use: Designed for sustained performance in combing operations.
  • Multiple Configurations: Available in different pinning densities, strip lengths and projection options.

Technical Specifications

Parameter Specification
Application Wool / worsted yarn processing
Primary Function Combing of fibre tuft ends
Pinning Densities 14–32 N/cm
Strip Length 450 mm, 460 mm, 470 mm, 510 mm
Standard Projection 8.2 mm
Optional Projection 9.2 mm or 10.2 mm for flax processing

Machine Compatibility

  • NSC n. Schlumberger – PB26-33
  • St. Andrea – up to PB 90
  • Textima – all types
  • SMB Leisnig – all types
  • Shanghai No. 1 – B311, B251-FX251

Feed Comb

Engineered for Enhanced Wear Resistance

We manufacture feed combs as a secondary pinned product for combing machines, available as fully pinned feed comb plates and pin strips. We also supply compatible spare parts, including wedges, dampers, fixing screws and components for older models of combing machines

Product Range

feed-comb
feed-comb
feed-comb

Key Features

  • Two Designs: Available in Type A and Type B.
  • Multiple Base Designs: Plastic base available in trapeze form and L form.
  • No Adhesive: Designed without adhesive.
  • No Heating: No heating required.
  • Robust & Reliable: Designed for all-purpose use with robust and reliable performance.
  • Easy Pin Removal: No additional equipment needed for pinning and pin removal.
  • Spare Parts: Wedges, dampers, fixing screws and compatible spare parts available.

Steel Grades

Parameter Specification
Product Type Feed Comb
Type Type A and Type B
Base Design Plastic base in trapeze form; plastic base in L form
Pinning Densities Type A: 5, 6, 7, 8.5; Type B: 5, 6, 7, 8.5
Density Identification Blue: 5; Orange: 6; Yellow: 7; Pink: 8.5
Pin Strip Plastic pin-strip for insertion into aluminium base
Properties No adhesive, no heating, all-purpose use, robust, reliable
Range of Applications All the combing machines listed above
Pinning and Pin Removal No additional equipment needed

Machine Compatibility

  • Schlumberger
  • St Andrea
  • Textima & other combers

Industry We Serve

Explore our comprehensive range of products designed to meet diverse industrial requirements.

Worsted

Frequently Asked Questions

Find answers to common questions about our products, applications, and capabilities.

A top comb is designed for effective combing of fibre tuft ends during worsted yarn processing.

Our top combs are available in pinning densities from 14–32 N/cm.

Top combs are available in 450 mm, 460 mm, 470 mm and 510 mm strip lengths.

The standard projection is 8.2 mm. Projections of 9.2 mm and 10.2 mm are also available for processing flax.

They are suitable for NSC n. Schlumberger PB26-33, St. Andrea up to PB 90, Textima, SMB Leisnig and Shanghai No. 1 B311/B251-FX251 machines.

Yes. The top combs are designed to facilitate easy replacement and long-term use.

A feed comb is a secondary pinned product for combing machines, available as fully pinned feed comb plates and pin strips.

Feed comb pin strips are available in Type A and Type B designs.

The feed comb pin strips are available with a plastic base in trapeze form and plastic base in L form.

Both Type A and Type B are available in 5, 6, 7 and 8.5 pinning densities, identified by different colours.

They are suitable for Schlumberger, St Andrea, Textima and other combers.

Yes. We supply compatible spare parts including wedges, dampers and fixing screws, including parts for older models of combing machines.

No. No additional equipment is needed for pinning and pin removal.
