Aluminium & Wooden Lags

Our Aluminium & Wooden Lags are designed for efficient rag tearing across a range of machines and applications. Available in different pin densities, configurations and materials, they offer reliable pin retention, effective fibre opening and long-lasting performance.

Click here to download.

Aluminium Lags's
Product Range

Explore our comprehensive range of products designed to meet diverse industrial requirements.

LAGS WITH INCLINED PINS

LAGS WITH INCLINED PINS

-

LAGS WITH FLAT PINS

Key Features

  • Special-Grade Aluminium: Manufactured using special-grade aluminium for longer working life.
  • Multiple Pin Densities: Available in different pin densities for varied tearing requirements.
  • High-Quality Pins: Fitted with high-quality pins for dependable performance.
  • Flexible Pin Configurations: Available with flat and inclined pins.
  • Custom Pin Orientation: Pins can be fitted at an angle or radially according to customer requirements.
  • Balanced Profile: Designed with a balanced profile for consistent operation.
  • Interlocking Design: Available with interlocking profile options.

Technical Specifications

Parameter Specification
Material Special-grade aluminium
Application Rag tearing
Pin Type Flat / Inclined
Pin Orientation Angled / Radial
Pin Density Available in different configurations
Profile Balanced / Interlocking

Machine Compatible

  • Laroche
  • Margasa
  • Dello’Roco & Villani
  • Balkan
  • Schirp
  • Rolando

Double Width
Aluminium Lags

Double Width Aluminium Lags are designed for rag tearing applications where more even pin distribution and reduced mounting time are required. Their double-width configuration helps reduce the number of screw holes, while heat-treated carbon steel pins provide extended service life.

For initial opening applications, particularly on the 1st and 2nd cylinders, a 12 mm double-width lag can replace a conventional 15 mm lag, offering a potential reduction in material and mounting costs.

Product Range

Explore our comprehensive range of products designed to meet diverse industrial requirements.

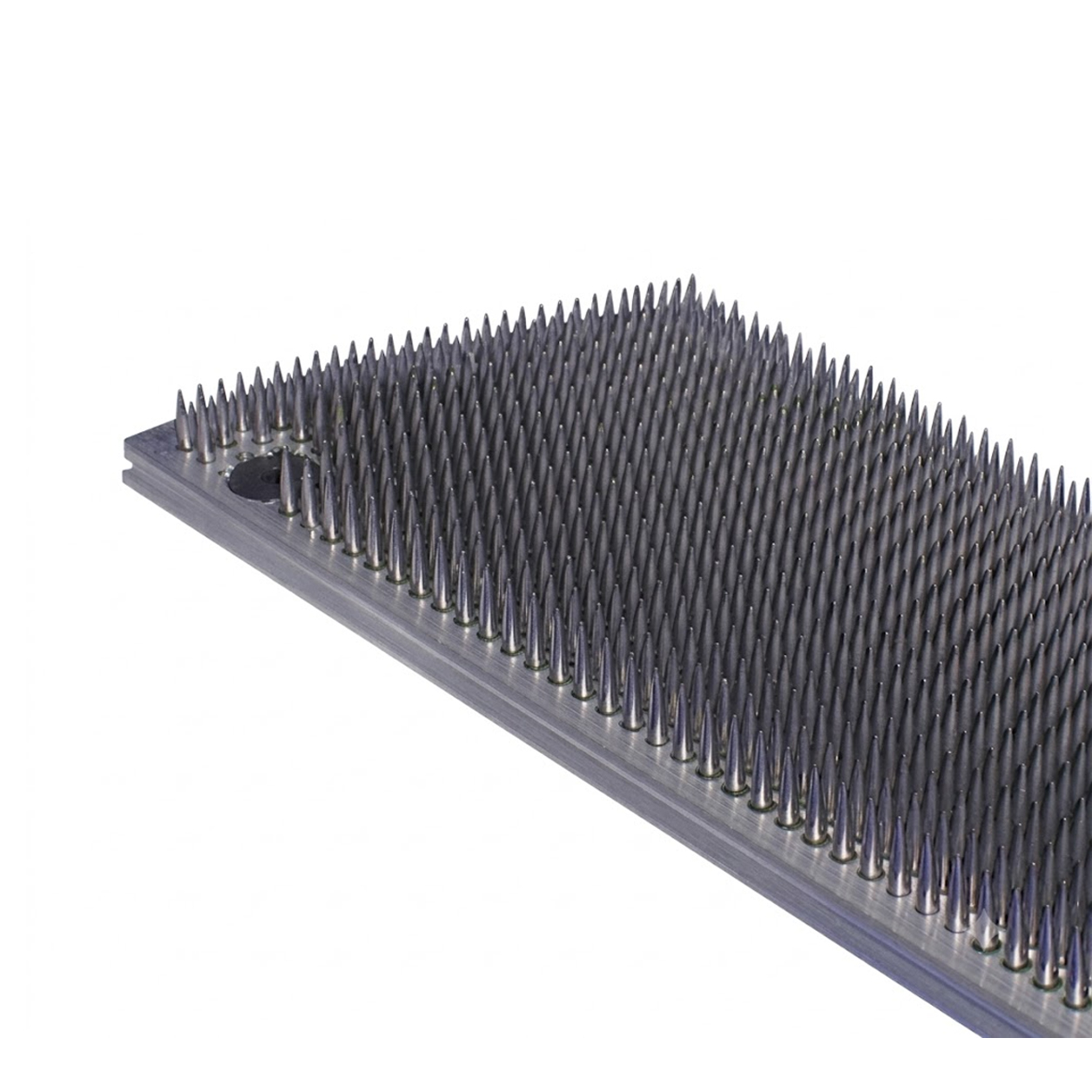

Double Width Aluminium Lags

Key Features

  • Double-Width Design: Provides more even distribution of pins across the lag.
  • Reduced Screw Holes: Requires fewer screw holes, helping reduce mounting time.
  • Initial Opening Application: Suitable for use on the 1st and 2nd cylinders.
  • Cost-Saving Configuration: A 12 mm double-width lag can replace a conventional 15 mm lag in suitable applications.
  • Heat-Treated Pins: Fitted with carbon steel heat-treated pins for extended service life.
  • Proven Technology: Designed using an established lag configuration for rag tearing applications.

Technical Specifications

Parameter Specification
Product Type Double Width Aluminium Lag
Material Aluminium
Application Rag Tearing / Initial Opening
Typical Application 1st & 2nd Cylinders
Lag Configuration Double Width
Pin Material Carbon Steel
Pin Treatment Heat Treated
Mounting Reduced number of screw holes
Standard Replacement Option 12 mm double-width lag in place of conventional 15 mm lag

Machine Compatibility

  • Laroche
  • Margasa
  • Balkan
  • Rolando
  • Schirp

Wooden Lags's
Product Range

Explore our comprehensive range of products designed to meet diverse industrial requirements.

Wooden Lags For Rag Tearing
Wooden Lags

Key Features

  • High-Density Laminated Wood: Manufactured using high-density laminated wood for strength and durability.
  • Reduced Pin Drop-Off: The laminated wood construction helps prevent pins from dropping off during operation.
  • Flexible Pin Options: Available with either flat or round pins.
  • Rag Tearing Application: Designed specifically for rag tearing machine applications.
  • Reliable Construction: Suitable for demanding operating conditions.
  • Application Flexibility: Pin configuration can be selected according to machine and application requirements.

Technical Specifications

Parameter Specification
Material High-density laminated wood
Application Rag Tearing
Pin Type Flat / Round
Pin Construction Securely fitted
Primary Benefit Helps prevent pin drop-off
Compatible Application Rag tearing machines

Machine Compatibility

  • Laroche
  • Margasa
  • Balkan
  • Rolando
  • Schirp

Industry We Serve

Explore our comprehensive range of products designed to meet diverse industrial requirements.

Recycling & Rag Tearing

Download Technical
Order Sheet

Download the below technical order form & mail us at bdm@zuvongroup.com

  1. Aluminium lags questionnaire

Frequently Asked Questions

Find answers to common questions about our products, applications, and capabilities.

Aluminium Lags are designed for use in rag tearing machines for demanding tearing and opening applications.

They are manufactured using special-grade aluminium selected for longer working life.

The lags are available with flat and inclined pins, with different pin densities.

Yes. Pins can be fitted at an angle or radially, depending on customer and machine requirements.

They are compatible with LAROCHE, MARGASA, BALKAN, ROLANDO, SCHIRP, DELLOROCO VILLANI, and other rag tearing machines.

Double Width Aluminium Lags are aluminium lags designed with a wider configuration to provide more even pin distribution and reduce the number of screw holes required for mounting.

They are particularly suitable for initial opening applications, including the 1st and 2nd cylinders of rag tearing machines.

Fewer screw holes can help reduce mounting time and simplify installation.

For suitable initial opening applications, a 12 mm double-width lag can replace a conventional 15 mm lag, helping reduce material and mounting costs.

The lags are fitted with carbon steel heat-treated pins designed for extended service life.

Wooden Lags are manufactured using high-density laminated wood designed for demanding rag tearing applications.

The high-density laminated construction provides a durable lag base and helps prevent pin drop-off during operation.

Wooden Lags are available with flat pins or round pins.

They are designed for rag tearing machines used in recycling and textile waste processing applications.

Yes. Wooden Lags can be supplied with flat or round pins based on the machine and application requirements.
