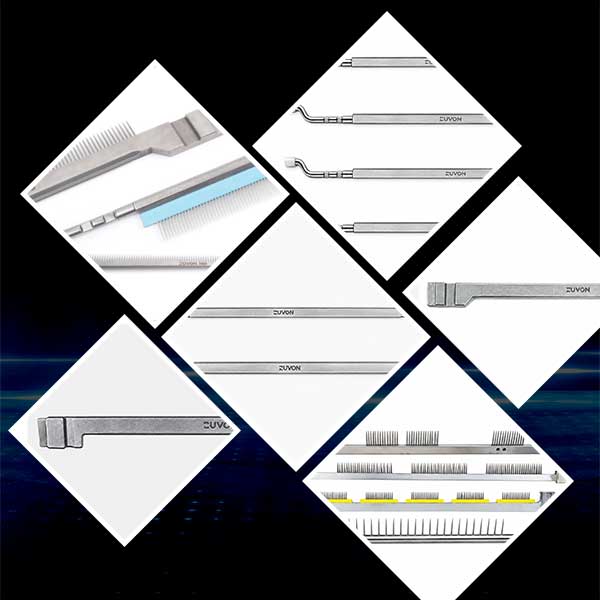

Faller Bar & Pins Strips

We offer a range of faller bars and pin strips designed for gill box applications across different machine configurations. The range includes solutions for chain-driven and screw-driven gill boxes, with options for different pin types, pin densities, pin fields and dimensions to suit specific machine requirements. Manufactured using case-hardened steel, the faller bars feature specially hardened ends for smooth and reliable operation. Metallic pin strips are secured using glue or soldering to minimise the risk of pins or strips dislodging during operation.

Faller Bar
Product Range

Explore our range of Faller Bars, available in different configurations and dimensions to suit specific gill box requirements.

-

NSC GC 12/13/14/15/30

-

Sant'Andrea CSN

-

Sant'Andrea ST21

-

NSC GN5/6/7

-

Sant'Andrea SEUP

-

COGNETEX

Key Features

  • Case-Hardened Steel Construction: The entire Faller Bar is made from case-hardened steel for durable performance.
  • Extra-Hardened Ends: Specially hardened ends help ensure smooth and reliable operation.
  • Secure Pin Strip Fixing: Metallic strips are secured using glue or soldering.
  • Reduced Risk of Pin Dislodging: Secure fixing helps minimise the risk of pins or strips dislodging during operation.
  • Multiple Pin Configurations: Available with round and flat pins, with varying pin densities and pin field dimensions depending on the machine configuration.
  • Machine-Specific Options: A range of Faller Bar profiles is available for different machine models.

Technical Specifications

Parameter Specification
Material Case-hardened steel
End Hardening Specially extra-hardened ends
Pin Type Round and flat
Pin Density – Chain-Driven (NSC GC 12/13/14/15/30 and Sant'Andrea CSN) 2, 3, 4, 5, 7 and 8 pins per cm
Pin Density – Chain-Driven (Sant'Andrea ST21 and TC3) 2, 4, 5, 6 and 7 pins per cm
Pin Density – Screw-Driven (NSC GN5/6/7 and OKK) 2.5, 3, 3.5, 4, 5, 6, 7, 8 and 9 pins per cm
Pin Density – Screw-Driven (Sant'Andrea VSN and SEUP) 2.5, 3, 3.5, 4, 5, 6 and 7 pins per cm
Pin Density – Cognetex System 5, 6, 7 and 8 PPCM
Pin Field – Chain-Driven System 220 mm and 270 mm
Pin Field – Screw-Driven (NSC GN5/6/7 and OKK) 220 mm
Pin Field – Screw-Driven (Sant'Andrea VSN and SEUP) 200 mm
Pin Field – Cognetex System 225 mm and 270 mm
Flange Height – Chain-Driven System 13.5 mm and 7.5 mm for NSC GC series and Sant'Andrea CSN; 13 mm, 13.5 mm and 17.5 mm for Sant'Andrea ST21/TC3
Pin Projection – Screw-Driven (NSC GN5/6/7 and OKK) 9.7 mm and 10 mm
Pin Projection – Screw-Driven (Sant'Andrea VSN and SEUP) 10 mm
Fixing Methods Two-component adhesive, pre-placed fixing and press fit
Pin Strip Fixing Glue or soldering
Fixing Plate Material – Cognetex System PE, as indicated in the brochure
Gill Box Types Chain-driven and screw-driven

Machine-specific Faller Bar Range

NSC GC 12/13/14/15/30

  • 332 × 13.5 mm
  • 332 × 17.5 mm
  • 382 × 13.5 mm
  • 382 × 17.5 mm

Sant'Andrea CSN

  • 332 × 13.5 mm
  • 332 × 17.5 mm

Sant'Andrea ST21

  • 332 × 13 mm
  • 364 × 12 mm
  • 414 × 12 mm

NSC GN5/6/7

  • 320 × 23 × 6 mm

Sant'Andrea SEUP

  • 300 × 25 × 6.5 mm

COGNETEX

  • SC400 – 328 × 15 × 5.1 mm – 22°
  • SC400 – 358 × 15 × 5.6 mm – 22°
  • SC600 – 378 × 18 × 5.2 mm – 21°
  • SSTR – 328 × 12 × 5.0 mm – 13°
  • SSTR – 328 × 12 × 5.2 mm – 22°

Faller Bar

  • The entire Faller Bar is made from case hardened steel, with ends specially extra-hardened,ensuring smooth and reliable operation.
  • Pins are manufactured from a special alloy-based tooling steel, offering significantly enhanced wear resistance compared to conventional high carbon steel pins.
  • Metallic strips for Faller Bars are securely fixed using glue or soldering,ideal for hard fibres and eliminating any risk of pins or strips dislodging during operation.
  • Our range of metallic Pin Strips includes both round and
    flat pin options.
Faller Bar Nio

Machine Compatible

  • GC
  • ST21
  • NSC (Schlumberger)
  • NSC GC 12/13/14/15/30
  • Sant'Andrea CSN/ST21/TC3/VSM/SEUP
  • NSC GN4/5/6/7
  • OKK
  • COGNETEX

Industries Served

Explore our range of Faller Bars, available in different configurations and dimensions to suit specific gill box requirements.

Frequently Asked Questions

Find answers to common questions about our products, applications, and capabilities.

The faller bars are made from case-hardened steel, with specially hardened ends to support smooth and reliable operation.

The metallic pin strips are secured using glue or soldering, helping minimise the risk of pins or strips dislodging during operation.

The pinning systems feature round and flat pins, with different pin densities and configurations depending on the machine requirements.

The brochure covers pinning systems for chain-driven and screw-driven gill boxes.

The brochure lists NSC GC 12/13/14/15/30, NSC GN5/6/7, St. Andrea CSN, ST21, TC3, VSN, SEUP, Cognetex and OKK across its pinning system and faller bar sections. Compatibility depends on the specific product variant.

Yes. The brochure illustrates different faller bar profiles for NSC, St. Andrea and Cognetex machines. The appropriate variant should be selected according to the machine model and its technical requirements.
